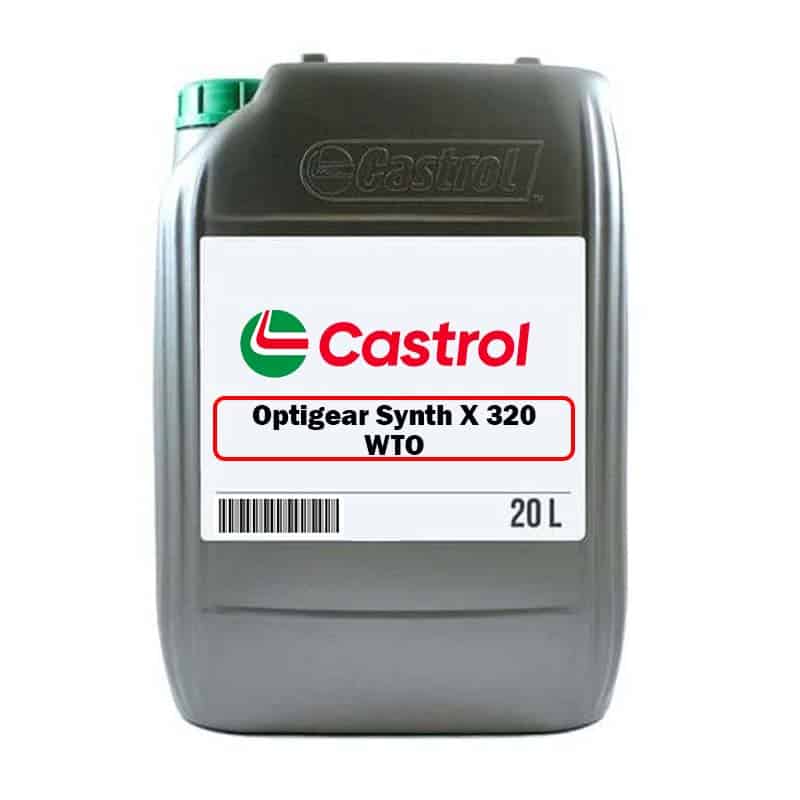

Castrol Optigear Synthetic X 320 WTO
01736 757002VISCOSITY - ISO 320
Castrol Optigear Synthetic X 320 WTO Synthetic Gear Oil
Castrol Optigear™ Synthetic X 320 WTO is based on synthetic hydrocarbons and a special plastic deformation (PD) and surface improvement additive package. The additive package, when activated by high specific loads and corresponding temperatures, helps to equalize surface roughness without creating abrasion leading to surface improvement (plastic deformation).
Optigear Synthetic X 320 WTO is a CLP-HC gear oil (according to DIN 51502) and exceeds the minimum requirements according to DIN 51517 (2003), part 3, CLP gear oils.
Optigear Synthetic X 320 WTO may be used in spur gear, bevel gears or planetary gear units and in heavy-loaded gear units, e.g. wind turbine main gears. It is also suitable for the lubrication of oil-lubricated rolling bearings.
Depending on the specific application, Optigear Synthetic X may be used in an operating temperature range from -35 °C to +95 °C.
Castrol Optigear Synthetic X 320 WTO Synthetic Gear Oil Product Advantages:
- High load-carrying capacity.
- Superior micro pitting protection.
- Excellent friction reduction.
- Good filtration properties.
- Excellent bearing lubrication suitability.
| Name | Method | Units | Optigear Synthetic X 320 WTO |
| ISO Viscosity Grade
| – | – | 320 |
| Density @ 15°C / 59°F ISO 12185 /
| ASTM D4052 | kg/m³ | 850 |
| Kinematic Viscosity @ 40°C / 104°F ISO 3104 /
| ASTM D445 | mm²/s | 325 |
| Kinematic Viscosity @ 100°C / 212°F
| ISO 3104 / ASTM D445 | mm²/s | 40.8 |
| Viscosity Index
| ISO 2909 / ASTM D2270 | – | 179 |
| Flash Point – open cup method
| ISO 2592 / ASTM D92 | °C/°F | >250/482 |
| Pour Point | ISO 3016 / ASTM D97 | °C/°F | -45/-49 |
| Rust test – distilled water (24 hrs)
| ISO 7120 / ASTM D665A | – | Pass |
| Copper corrosion (3 hrs@100°C/212°F)
| ISO 2160 / ASTM D130 | Rating | 1 |
| FE-8 Bearing Wear test increased load (F.562831.01-7.5/100-80)
| DIN 51819-3 (modified) | roller wear (Mw50), mg | <5 |
| FE-8 Bearing Fatigue test (F.562831-75/100-70 800 hrs)
| DIN 51819-3 (modified) | roller wear (Mw50), mg | <5 |
| FZG Gear Scuffing test – A/8.3/90
| ISO 14635-1 | Failure Load Stage | >14 |
| FZG Micropitting test @ 60°C/140°F | FVA 54-7 | Failure Load Stage Micropitting Rating
| =10 High
|
| FZG Micropitting test @ 90°C/194°F | FVA 54-7 | Failure Load Stage Micropitting Rating
| >10 High
|
| Foam Sequence I – tendency / stability | ISO 6247 / ASTM D892 | ml/ml | <100/10 |
Optigear Synthetic X gear oil can be applied by an oil can, oil cup reservoir, splash, spray mist or by automatic dispensing equipment and central or circulation systems.
It is compatible with mineral oils and esters. This means that traces up to 3% of previous oil in the gear case after draining will not pose any problems.
However, the beneficial effects of the special PD additives are reduced when mixed with other gear oils.
To achieve an optimum Lifetime of your elastomer seals we recommend the use of Viton (FKM) based materials.
The product should not be stored at temperatures over 60°C. It should be kept away from sunlight, intense cold and extreme temperature fluctuations. If possible, the packaging should not be exposed to the elements. Otherwise, the drums should be laid horizontally to avoid any contamination from water and to prevent the product’s label from rubbing off.
All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.
