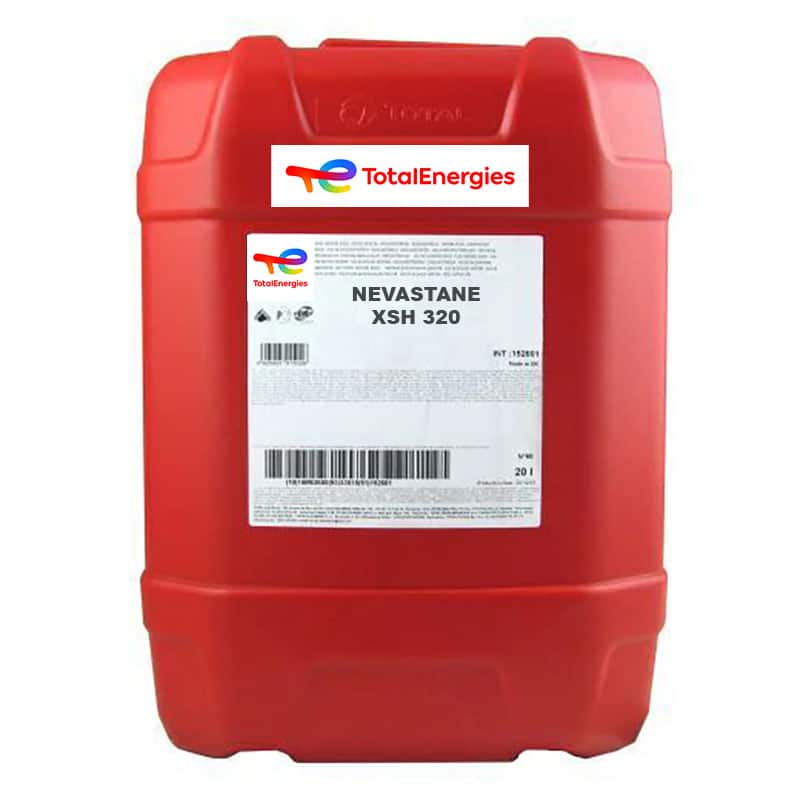

Total Nevastane XSH 320
01736 757002VISCOSITY - ISO 320
Total Nevastane XSH 320 Synthetic (PAO) Gear Oil, Suitable for Incidental Food Contact
- NEVASTANE XSH oils (grades 150 to 460) are recommended for the lubrication of gear reducers, plains, and roller bearings with high loads in the food processing industries.
- NEVASTANE XSH 150 to 460 oils are also suitable for the lubrication of numerous applications in the food industry such as chains and conveyor belts.
- NEVASTANE XSH formulation, 100% synthetic, based on PAO, provides superior protection and longer service life to the lubricated equipment.
Total Nevastane XSH 320 Synthetic (PAO) Gear Oils Product Advantages:
- NEVASTANE XSH oils are recommended for use where incidental contact with food may occur. Using maintenance lubricants which have been registered H1 with NSF minimizes your critical control points as required by HACCP.
- 100% synthetic formulation.
- Wide temperature range.
- Significant extensions of oil drain intervals.
| TYPICAL CHARACTERISTICS | METHODS | UNITS | Value |
| Density at 20°C | ISO 12185 | – | 845 |
| Colour | Visual | – | Clear Bright Liquid |
| Appearance | Visual | – | Liquid |
| Kinematic viscosity at 40 °C | ISO 3104 | mm²/s | 320 |
| Kinematic viscosity at 100 °C | ISO 3104 | mm²/s | 36.0 |
| Viscosity Index | ISO 3104 | – | 159 |
| Flash Point C.O.C | ISO 2592 | °C | 272 |
| Pour Point | ISO 3016 | °C | -42 |
• The formulation of NEVASTANE XSH oils complies with the FDA chapter 21 CFR, 178.3570.
• NEVASTANE XSH oils are NSF H1 registered:
- NEVASTANE XSH 150: No 147305
- NEVASTANE XSH 220: No 147302
- NEVASTANE XSH 320: No 147303
- NEVASTANE XSH 460: No 147304
• NEVASTANE XSH oils are Kosher, Halal and ISO 21469 certified.
• International specification: ISO 12925-1 CKD.
• DIN 51517-3 CLP
International classifications
Manufacturers specifications
Before using the product, the vehicle’s maintenance guide should be checked. The product should not be stored at temperatures over 60°C. It should be kept away from sunlight, intense cold and extreme temperature fluctuations. If possible, the packaging should not be exposed to the elements. Otherwise, the drums should be laid horizontally to avoid any contamination from water and to prevent the product’s label from rubbing off.
All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.
