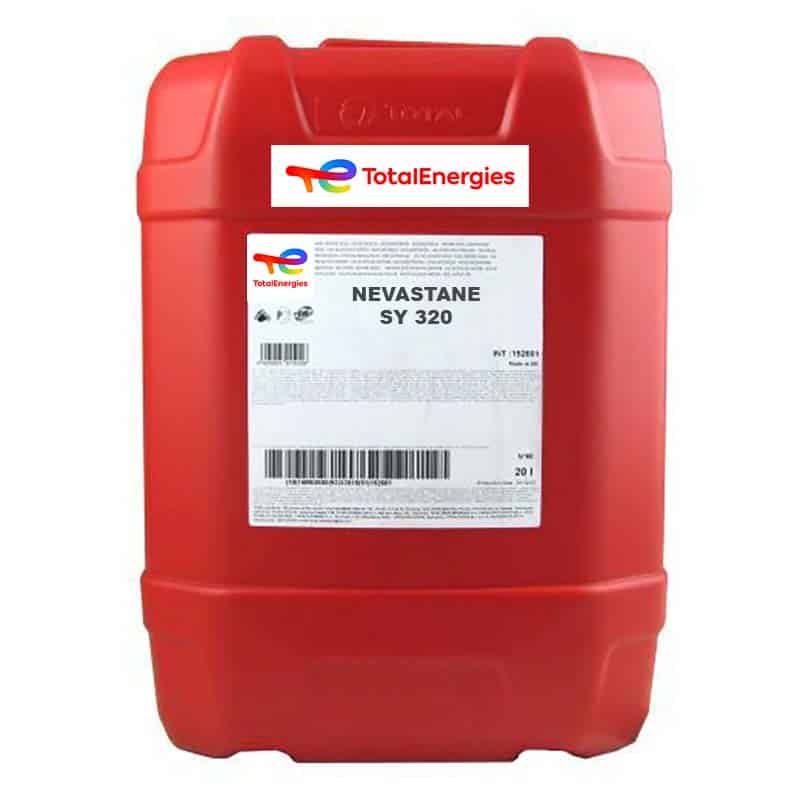

Total Nevastane SY 320
01736 757002VISCOSITY - ISO 320
Total Nevastane SY 320 Hydraulic Oil, Suitable for Incidental Food Contact
Total Nevastane SY 320 Hydraulic oil is recommended for use where incidental contact with food may occur. Using maintenance lubricants which have been registered H1 with NSF minimizes your critical control points as required by HACCP. Excellent thermal stability. Excellent resistance to water. Superior extreme pressure, anti-oxidation and anti-wear characteristics.
- NEVASTANE SY oils are adapted for the lubrication of numerous applications in the food and beverage industry with high loads, high temperatures and in presence of water.
- NEVASTANE SY oils are specially recommended for the lubrication of worm gears and reducers, high temperature oven chains and bottling equipments.
- NEVASTANE SY formulation, 100% synthetic, based on polyglycol and high performance additives, provides outstanding extreme-pressure, anti-wear and anti-oxidant properties.
Total Nevastane SY 320 Hydraulic oil, Suitable for Incidental Food Contact – Product Advantages:
- NEVASTANE SY oils are recommended for use where incidental contact with food may occur. Using maintenance lubricants which have been registered H1 with NSF minimizes your critical control points as required by HACCP.
- Excellent thermal stability.
- Excellent resistance to water.
- Superior extreme pressure, anti-oxidation and anti-wear characteristics
| TYPICAL CHARACTERISTICS | METHODS | UNITS | Value |
| Appearance | Visual | – | Yellow liquid (may be slightly hazy) |
| Density @ 15°C | ISO 12185 | – | 1062 |
| Kinematic viscosity @ 40 °C | ISO 3104 | mm²/s | 320 |
| Kinematic viscosity @ 100 °C | ISO 3104 | mm²/s | 60.6 |
| Viscosity Index (VI) | ISO 3104 | – | 252 |
| Flash point C.O.C. | ISO 2592 | °C | > 240 |
| Pour point | ISO 3016 | °C | < -35 |
| 4 ball test – wear (scar diameter) | ASTM D 4172 | mm | 0.33 |
| 4 ball test – EP weld load | ASTM D 2783 | daN | 250 |
| FZG Test (A/8, 3/90°C) – Fail stage | DIN 51354-2 | – | >12 |
| FZG Micro pitting – Fail stage | FVA 54/I-IV | – | 10 |
- The formulation of NEVASTANE SY oils complies with the FDA chapter 21 CFR, 178.3570.
- NEVASTANE SY oils are NSF H1 registered:
NEVASTANE SY 220: No 133737 NEVASTANE SY 320: No 133738 NEVASTANE SY 460: No 133739 - NEVASTANE SY oils are biostable products, they do not promote the development of bacteria and mould.
Before using the product, the vehicle’s maintenance guide should be checked. The product should not be stored at temperatures over 60°C. It should be kept away from sunlight, intense cold and extreme temperature fluctuations. If possible, the packaging should not be exposed to the elements. Otherwise, the drums should be laid horizontally to avoid any contamination from water and to prevent the product’s label from rubbing off.
All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.
