Food Approved Oils

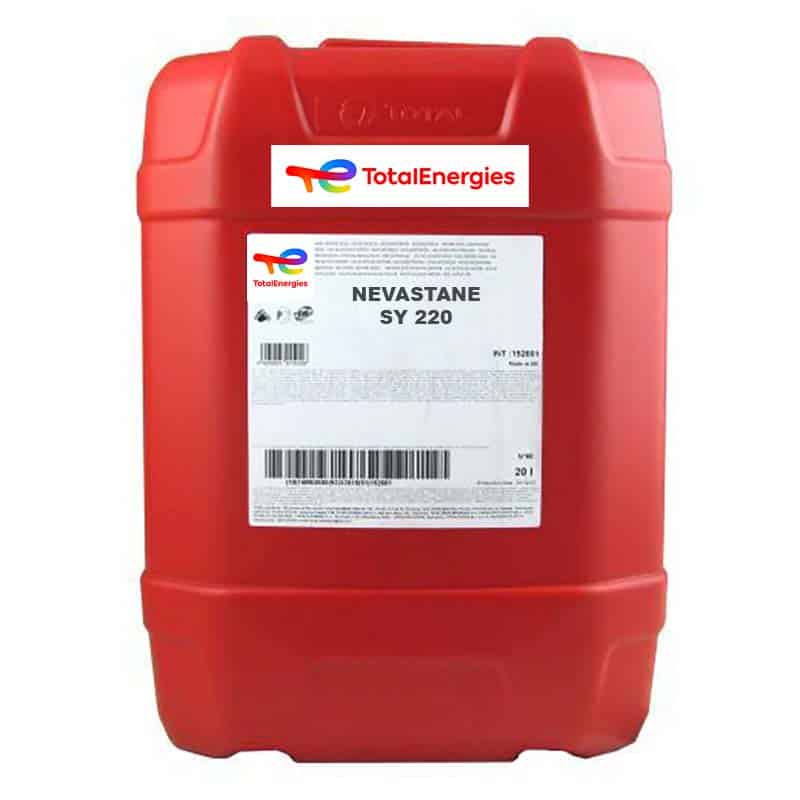

Total Nevastane SY 220
Brand Logo

VISCOSITY - ISO 220

Total Nevastane SY 220 Hydraulic Oil, Suitable for Incidental Food Contact

open
DESCRIPTION

Total Nevastane SY 220 Hydraulic oil is recommended for use where incidental contact with food may occur. Using maintenance lubricants which have been registered H1 with NSF minimizes your critical control points as required by HACCP. Excellent thermal stability. Excellent resistance to water. Superior extreme pressure, anti-oxidation and anti-wear characteristics.

open
APPLICATIONS
  • NEVASTANE SY oils are adapted for the lubrication of numerous applications in the food and beverage industry with high loads, high temperatures and in presence of water.
  • NEVASTANE SY oils are specially recommended for the lubrication of worm gears and reducers, high temperature oven chains and bottling equipments.
  • NEVASTANE SY formulation, 100% synthetic, based on polyglycol and high performance additives, provides outstanding extreme-pressure, anti-wear and anti-oxidant properties.
open
ADVANTAGES

Total Nevastane SY 220 Hydraulic oil, Suitable for Incidental Food Contact – Product Advantages:

  • NEVASTANE SY oils are recommended for use where incidental contact with food may occur. Using maintenance lubricants which have been registered H1 with NSF minimizes your critical control points as required by HACCP.
  • Excellent thermal stability.
  • Excellent resistance to water.
  • Superior extreme pressure, anti-oxidation and anti-wear characteristics.
open
TYPICAL CHARACTERISTICS
TYPICAL CHARACTERISTICS METHODS UNITS Value
Appearance Visual
Density @ 15°C ISO 12185 1057
Kinematic viscosity @ 40 °C ISO 3104 mm²/s 220
Kinematic viscosity @ 100 °C ISO 3104 mm²/s 41.9
Viscosity Index (VI) ISO 3104 242
Flash point C.O.C. ISO 2592 °C > 240
Pour point ISO 3016 °C < -39
4 ball test – wear (scar diameter) ASTM D 4172 mm 0.33
4 ball test – EP weld load ASTM D 2783 daN 250
FZG Test (A/8, 3/90°C) – Fail stage DIN 51354-2 > 12
FZG Micro pitting – Fail stage FVA 54/I-IV 10
open
APPROVAL & PERFORMANCE CLAIMS
  • The formulation of NEVASTANE SY oils complies with the FDA chapter 21 CFR, 178.3570.
  • NEVASTANE SY oils are NSF H1 registered:
    NEVASTANE SY 220: No 133737 NEVASTANE SY 320: No 133738 NEVASTANE SY 460: No 133739
  • NEVASTANE SY oils are biostable products, they do not promote the development of bacteria and mould.
International classifications

Manufacturers specifications

Approved:
Meets the requirements of:
open
ADDITIONAL INFORMATION

Before using the product, the vehicle’s maintenance guide should be checked. The product should not be stored at temperatures over 60°C. It should be kept away from sunlight, intense cold and extreme temperature fluctuations. If possible, the packaging should not be exposed to the elements. Otherwise, the drums should be laid horizontally to avoid any contamination from water and to prevent the product’s label from rubbing off.

All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.

Contact Us

Product Data Sheet

Total Nevastane SY 220 Food Safe Lubricant
PACK SIZES AVAILABLE
icon
25Kg

Request a quote for this product
