Total Equivis ZS 100
01736 757002VISCOSITY - ISO 100

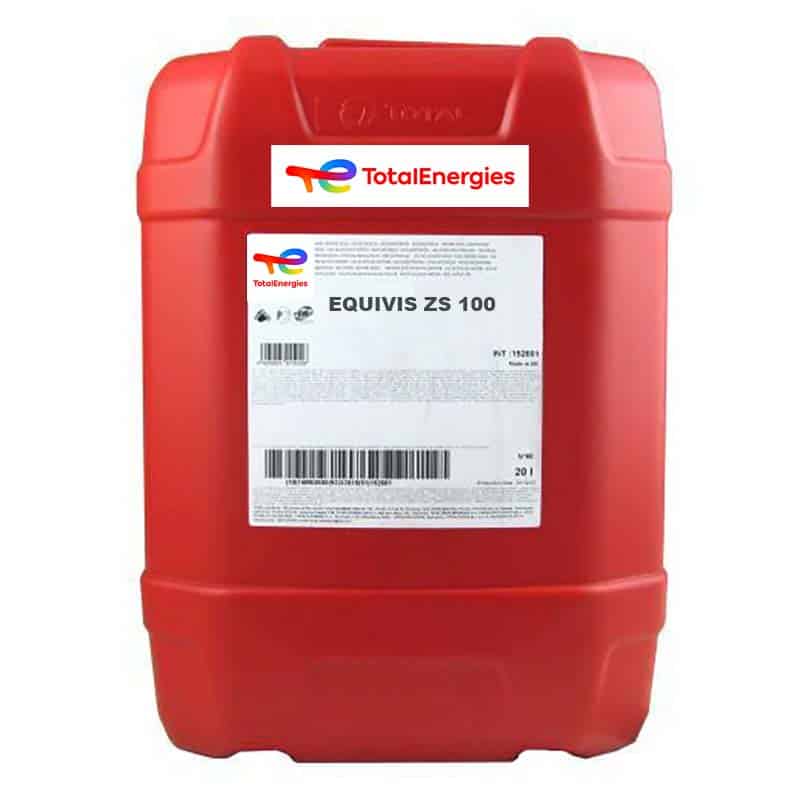

Total Equivis ZS 100 High Viscosity Anti-Wear Hydraulic Oil
EQUIVIS ZS range is recommended for all kinds of hydraulic systems operating under high pressure (limit as indicated by the pump manufacturer) and high temperature.
Lubricants are especially suitable for hydraulic systems working under extreme temperature variations and equipment operating outside: easy start-up at low temperatures and regular operating in all seasons: civil engineering, agriculture, marine, transport and other industrial applications.
Total Equivis ZS 100 High Viscosity Anti-Wear Hydraulic Oil Product Advantages:
- Very high viscosity index
- Good shear stability.
- Superior thermal stability avoids the formation of sludge even at high temperatures.
- Very good oxidation stability ensures a long service life of the fluid.
- High protection against wear ensuring maximum equipment life.
- Excellent hydrolytic stability avoiding filter blocking.
- Remarkable filterability even in the presence of water.
- Excellent protection against rust and corrosion.
- Good anti-foam and air release properties by using silicon-free components.
- Very low pour point.
- Good demulsibility ensures rapid water separation.
| TYPICAL CHARACTERISTICS | METHODS | UNITS | Value |
| Appearance | Internal | – | Clear |
| Density at 15°C | ISO 3675 | kg/m3 | 885 |
| Viscosity at 40°C
|
ISO 3104
|
mm2
/s |
100 |
| Viscosity at 100°C
|
ISO 3104
|
mm2
/s |
15.6 |
| Viscosity index | ISO 2909 | – | 165 |
| Cleveland flash point | ISO 2592 | °C | 230 |
| Pour point | ISO 3016 | °C | – 36 |
| FZG (A/8, 3/90) – fail stage | DIN 51354 | – | – |
| Filterability index (IF) | NF E 48-690 | – | 1.05 |
| Shear resistance 250 cycles
Viscosity loss @ 40°C |
DIN 51382 | % | – |
INTERNATIONAL CLASSIFICATIONS
Before using the product, the vehicle’s maintenance guide should be checked. Oil changes should be carried out by the manufacturer’s recommendations. The product should not be stored at temperatures over 60°C. It should be kept away from sunlight, intense cold and extreme temperature fluctuations. If possible, the packaging should not be exposed to the elements. Otherwise, the drums should be laid horizontally to avoid any contamination from water and to prevent the product’s label from rubbing off.
All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.
