Total Dynatrans CVT 10w-30
01736 757002VISCOSITY - SAE 10w-30

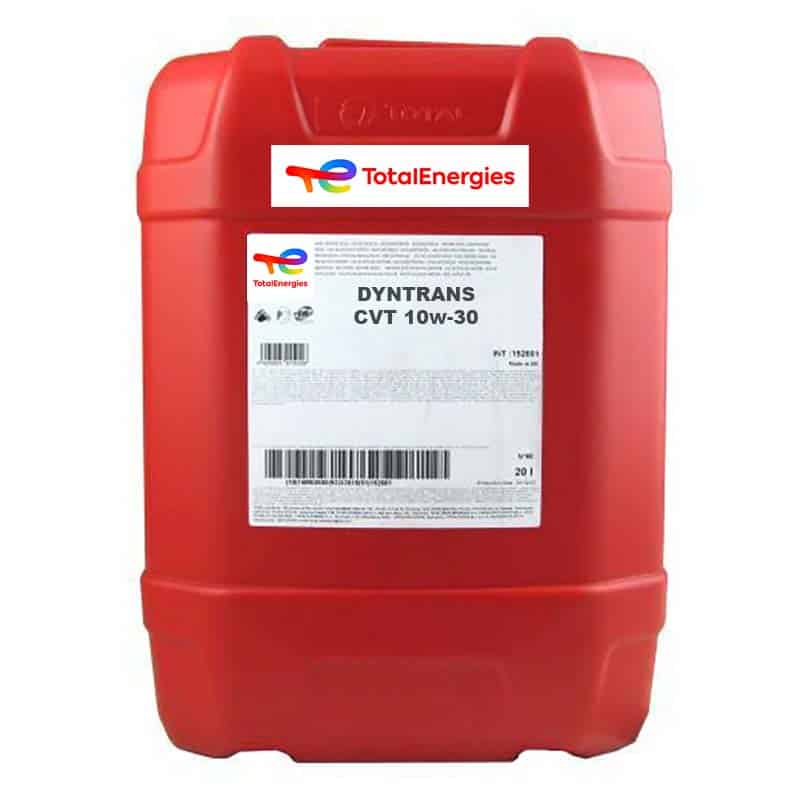

Total Dynatrans CVT 10w-30 - Agricultural and Construction CVT Transmissions Lubricant
TOTAL DYNATRANS CVT 10W-30 is dedicated to lubrication of “Continuously Variable Transmissions” (CVT) installed on agricultural tractors and some construction equipment.
This lubricant is also perfectly adapted to traditional transmissions, wet clutch transmissions including those equipped with wet brakes.
TOTAL DYNATRANS CVT 10W-30 is also designed to lubricate hydraulic systems, power-assisted steering and power-takeoffs (PTO) with wet clutches.
TOTAL DYNATRANS CVT 10W-30 is adapted to a wide range of agricultural and Public Works equipment and helps to reduce the stock and the number of lubricants.
Its characteristics specifically adapted to CVT systems, guarantee smooth and progressive transmission operation.
TOTAL DYNATRANS CVT 10W-30 has also a very strong resistance to the temperature together with a high anti-wear performance assuring transmission durability.
| TYPICAL CHARACTERISTICS | METHODS | UNITS | |
| Kinematic Viscosity at 40°C
|
ASTM D445 | mm²/s | 71.8 |
| Kinematic Viscosity at 100°C
|
ASTM D445 | mm²/s | 10.8 |
| Viscosity Index | ASTM D2270 | – | 139 |
| Pour Point | ASTM D97 | °C | -45 |
InternationalSpecifications:
- API GL-4
Manufacturer’s approvals:
- ZF TE-ML 06F
- MASSEY-FERGUSON CMS M1145
- AGRICULTURE & CONSTRUCTION
- TRANSMISSIONS
- UTTO
Suitable for CVT transmission systems:
- CNH MAT 3540
- DEUTZ TTV
- JOHN DEERE AUTOPOWER
- JCB
Meets the requirements of the specifications:
- MASSEY FERGUSON CMS M1143
- DYNA VT
- CASE CVX
- STEYR : CVT
Before using the product, the vehicle’s maintenance guide should be checked. Oil changes should be carried out in accordance with the manufacturer’s recommendations. The product should not be stored at temperatures over 60°C. It should be kept away from sunlight, intense cold and extreme temperature fluctuations. If possible, the packaging should not be exposed to the elements. Otherwise, the drums should be laid horizontally in order to avoid any contamination from water and to prevent the product’s label from rubbing off.
All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.
