Agricultural Transmission & Gear Oil

Total Dynatrans ACX 10W
Brand Logo

VISCOSITY - SAE 10

Total Dynatrans ACX 10W - Hydraulic systems and transmission components (axles or gearboxes)

open
DESCRIPTION

The 10W grade has a very fast de-aeration time and good filterability, avoiding any cavitation risks in hydraulic pumps. TOTAL DYNATRANS ACX 10W should be used in replacement of CATERPILLAR HYDO Advanced, with a drain interval extension of up to 3000 working hours and more, within regular oil analysis.

open
APPLICATIONS

Dynatrans ACX 10W, 30, 50 are adapted to hydraulic systems, powershift gearboxes, axles and final drives when the manufacturer recommends a fluid meeting Caterpillar TO-4 or one of the above-mentioned specifications.

Dynatrans ACX range is recommended for Mining, Earthmoving and Construction machinery applications.

  • SAE 10W grade is mainly used in hydraulic systems
  • SAE 30 grade is mainly used in powershift transmissions
  • SAE 50 grade is mainly used in axles & final drives

Dynatrans ACX 10W and 30 should be used in replacement of CATERPILLAR HYDO Advanced 10, 20 and 30, with a drain interval extension of up to 3000 working hours and more, within regular oil analysis.

open
ADVANTAGES

TOTAL DYNATRANS ACX 10W product benefits:

  • Excellent anti-wear and anticorrosion properties, increasing the durability of the lubricated parts
  • Good performance with respect to seals, without aggressiveness to rubber hoses
  • Friction properties suitable to CATERPILLAR, KOMATSU and other Construction & Mining machinery providing long transmission life
  • Very shear-stable viscosity preserving the hydraulic pump volumetric efficiency
  • Good fluidity at low temperatures, providing good fluid flow during start-up
  • Formulated with selected base oils associated to recently developed chemistry, providing better oxidation resistance at high temperatures
  • Emulsifying property of the oil fully keeps water condensation in emulsion and prevents pump failures in the winter or rapid oil degradation in summer.
open
TYPICAL CHARACTERISTICS
TYPICAL CHARACTERISTICS METHODS UNITS  10w
Kinematic Viscosity at 40°C



ASTM D445 mm²/s 41.5
Kinematic Viscosity at 100°C



ASTM D445 mm²/s 6.7
Viscosity Index ASTM D2270 116
Pour Point ASTM D97 °C -39
open
APPROVAL & PERFORMANCE CLAIMS

Approvals:

ZF TE-ML 03C

DANA-OHTM-TO10W

Meets Requirements of:

API GL-4 / CF

CATERPILLAR TO-4

CATERPILLAR HYDO Advanced 10

ALLISON C4 (Obsolete)

KOMATSU Micro Clutch Test

(JCMAS)

Suitable for:

HITACHI, KOMATSU, DANA, EATON-FULLER, ROCKWELL, JCB, etc…

open
ADDITIONAL INFORMATION

Before using the product, the vehicle’s maintenance guide should be checked. Oil changes should be carried out in accordance with the manufacturer’s recommendations. The product should not be stored at temperatures over 60°C. It should be kept away from sunlight, intense cold and extreme temperature fluctuations. If possible, the packaging should not be exposed to the elements. Otherwise, the drums should be laid horizontally in order to avoid any contamination from water and to prevent the product’s label from rubbing off.

All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.

Contact Us

Product Data Sheet

Safety Data Sheet

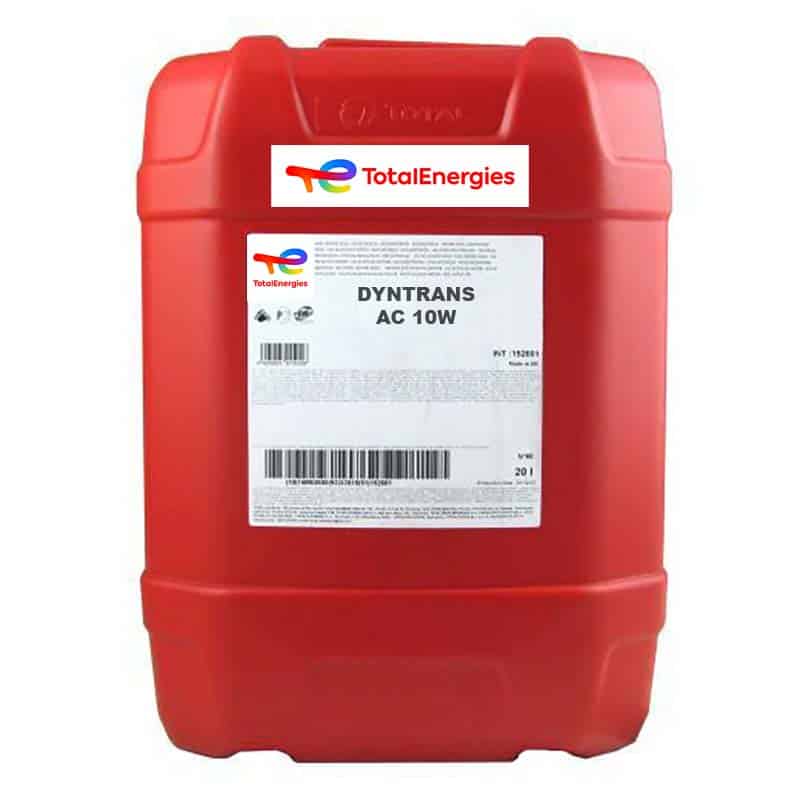

Total Dynatrans AC 10w Transmission Oil
PACK SIZES AVAILABLE
icon
20L
icon
208L
1000L

Request a quote for this product
