Compressor Oils

Total Dacnis 32
Brand Logo

VISCOSITY - ISO 32

Total Dacnis 32 Rotary Screw Air Compressor Oil

open
DESCRIPTION

Total Dacnis 100 Compressor Oil is a mineral-based oil formulated with specific additive combinations specifically for lubricating rotary screw air compressors in conditions where the discharge temperature is below 100 °C.

This lubricant is also suitable for the lubrication of vacuum pumps in case of primary vacuum.

open
APPLICATIONS
  • Mineral oils with specific high-performance additives designed to lubricate screw and reciprocating air compressors:
    • for screw compressors: DACNIS 32, 46, or 68
    • for reciprocating compressors: DACNIS 68, 100 or 150.
  • For use in conditions where the discharge temperature does not exceed 100°C, otherwise, the use of synthetic oils is preferred.
open
ADVANTAGES

Total Dacnis 32 Rotary Screw Air Compressor Oil Advantages:

  • The properties of DACNIS :
    – avoid the carbon build-up
    – allow a good oil/air and oil/condensates separation
    – protect components against wear and corrosion.
  • The use of DACNIS allows real cuts in the operating costs of the compressed air production facility by optimising the compressor efficiency.
  • Extending the service life of the separating filter elements. The DACNIS have an anticlogging property that ensures the efficiency of the filters during a long period.
  • Remarkable low-temperature properties along with improved oxidation stability.
open
TYPICAL CHARACTERISTICS
TYPICAL CHARACTERISTICS METHODS UNITS DACNIS
Density at 15°C ISO 3675 kg/m³ 875
Viscosity at 40°C ISO 3104 mm²/s 32
Viscosity index ISO 2909 100
Pour point ISO 3016 °C  -27
Flash point (open cup) ISO 2592 °C 244
Conradson Residue NF ISO 6615 % 0.13
open
APPROVAL & PERFORMANCE CLAIMS
  • ISO 6743-3 classified DAG & DAB for heavy duty applications.
  • DIN 51 506 VD-L for the use of DACNIS 100 & 150 in reciprocating air compressors.
  • Depending on the viscosity grades, DACNIS meet the requirements of :
    • BAUER, CIRRUS, COMPAIR, DRESSER RAND, NEUENHAUSER, SAUER & SOHN, SULZER BURCKHARDT, TANABE…
open
ADDITIONAL INFORMATION

All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.

Contact Us

Product Data Sheet

Total Energies Dacnis 32 Compressor Oil Lubricant

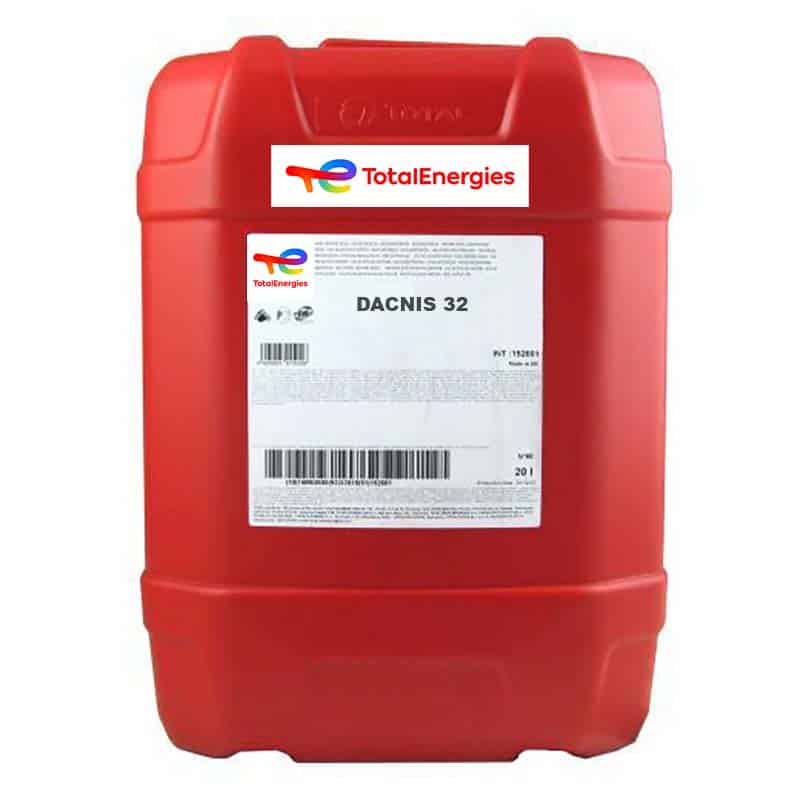

PACK SIZES AVAILABLE
icon
20L

Request a quote for this product
