High Performance Lubricants

Castrol Optigear Synthetic X 320
Brand Logo

VISCOSITY - ISO 320

Castrol Optigear Synthetic X 320 Gear Oil

open
DESCRIPTION

Castrol Optigear Synthetic X 320 is based on synthetic hydrocarbons and a special plastic deformation (PD) and surface improvement additive package.

The additive package, when activated by high specific loads and corresponding temperatures, helps to equalize surface roughness without creating abrasion leading to surface improvement (plastic deformation).

open
APPLICATIONS

Optigear Synthetic X may be used in spur gear, bevel gears or planetary gear units and in heavy loaded gear units, e.g. wind turbine main gears. It is also suitable for the lubrication of oil-lubricated rolling bearings. Depending on the specific application, Optigear Synthetic X may be used in an operating temperature range from -30 °C to +95 °C.

Optigear Synthetic X is a CLP-HC gear oil (according to DIN 51502) and exceeds the minimum requirements according to DIN 51517 (2003), part 3, CLP gear oils.

Optigear Synthetic X 320 gear oil can be applied by an oil can, oil cup reservoir, splash, spray mist or by automatic dispensing equipment and central or circulation systems.

It is compatible with mineral oils and esters. This means that traces up to 3% of previous oil in the gear case after draining will not pose any problems. However, the beneficial effects of the special PD additives are reduced when mixed with other gear oils.

To achieve an optimum Lifetime of your elastomer sealings we recommend the use of Viton (FKM) based materials.

open
ADVANTAGES

Castrol Optigear Synthetic X 320 Advantages:

  • High load-carrying capacity.
  • Superior micro pitting protection.
  • Excellent friction reduction.
  • Good filtration properties.
  • Excellent bearing lubrication suitability.
open
TYPICAL CHARACTERISTICS
Operating temperature Min. -30°C
Max. 100°C
Viscosity 320 mm/s² at 40°C
Viscosity index 150
Oil type PAO
Product type Lubricating Oils
Applicable to these sectors Cement, Chemicals, Engineered Wood, Machinery, Metal Goods, Metals, Mining, Power Generation, Pulp & Paper, Wind
open
APPROVAL & PERFORMANCE CLAIMS
open
ADDITIONAL INFORMATION

All packages should be stored under cover. Where outside storage is unavoidable drums should be laid horizontally to avoid the possible ingress of water and damage to drum markings. Products should not be stored above 60°C, or exposed to hot sun or freezing conditions.

Contact Us

Product Data Sheet

Product Safety Sheet

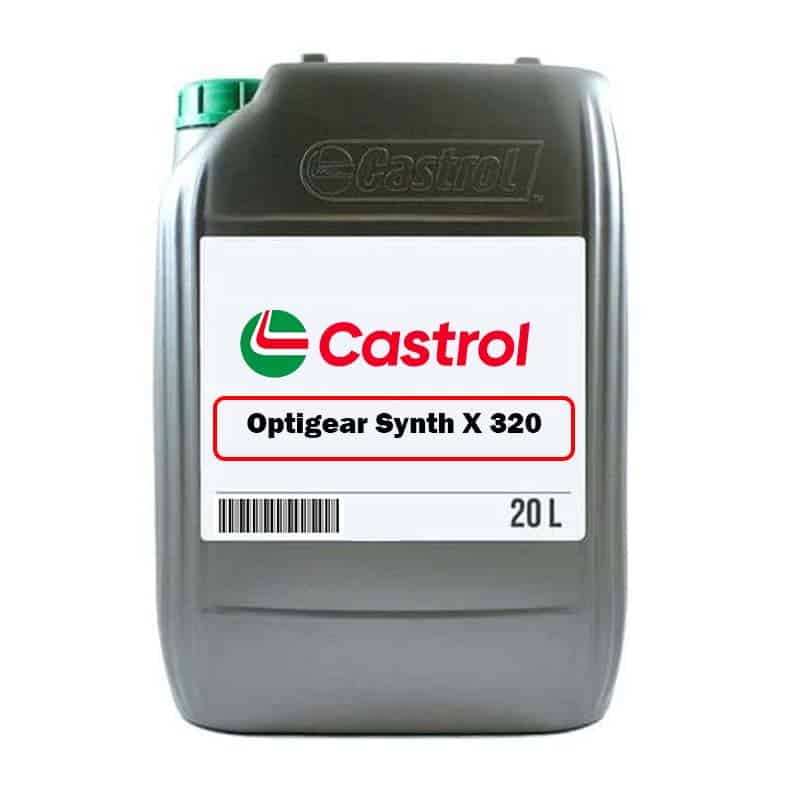

Castrol Optigear Synth X320 Synthetic High Performance Lubricant Oil
PACK SIZES AVAILABLE
icon
20L
icon
208L
1000L
